英國陶瓷研究協會/BCRA (British Ceramic Research Association) 陶瓷標準色板

BCRA (British Ceramic Research Association)是英國陶瓷研究協會，提供的陶瓷標準顏色板是業界常用的顏色標準，用于標定光譜分光式色度計，包括半球光路測試條件和 d/d 測試條件。

BCRA Series II色板的尺寸：5cm×5cm，共包括14塊板：
7 chromatic standards for spectral response
2 colour difference standards
3 neutral grey standards for photo linearity
1 Glossy Black Standard
1 Glossy white Standard

1，基本色Basic Colors
2，灰階及柔和色Grey Scale and Pastel Colors
3，特殊色Special Colors

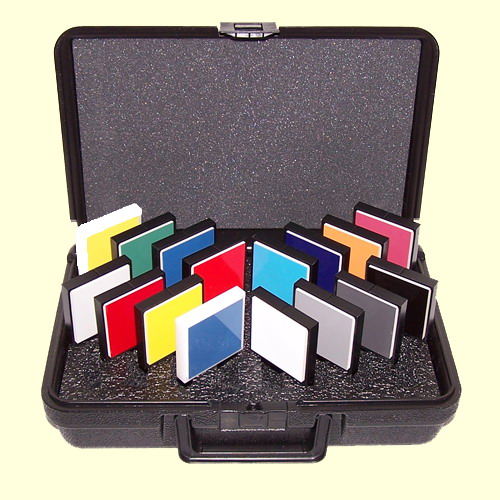

Set #1 - 基本色Basic Colors
	Part No. ATBC-16-02-u (uncalibrated) Part No. ATBC-16-02-c (calibrated) B1. Light Grey B2. Red B3. Difference Yellow B4. Difference Mid-Blue B5. White B6. Mid-Grey B7. Deep Grey B8. Black B9. Yellow B10. Deep Green B11. Mid-Blue B12. Deep Red-Orange B13. Cyan B14. Deep Blue B15. Mid-Orange B16. Deep Rose Pink

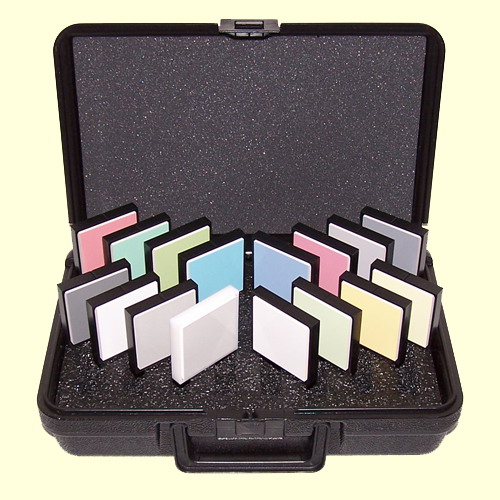

Set #2 — Grey Scale and Pastel Colors
	Part No. ATGP-16-02-u (uncalibrated) Part No. ATGP-16-02-c (calibrated) P1. Grey 20% P2. Grey 85% P3. Difference Grey 50% P4. Grey 40% P5. Grey 80% P6. Light Green P7. Light Orange P8. Light Yellow P9. Light Pink P10. Light Blue Green P11. Light Yellow Green P12. Light Cyan P13. Light Blue P14. Rose Pink P15. Grey 50% P16. Grey 33%

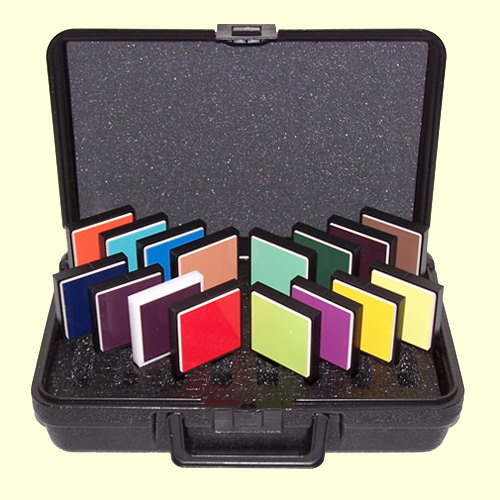

Set #3 — Special Colors 特殊色
	Part No. ATSC-16-02-u (uncalibrated) Part No. ATSC-16-02-c (calibrated) S1. Dark Blue-Violet S2. Deep Violet S3. Difference Deep Violet S4. Deep Red S5. Yellow-Green S6. Purple S7. Yellow-Orange S8. Greenish-Yellow S9. Red-Orange S10. Greenish-Blue S11. Dark Blue S12. Mid-Brown S13. Mid-Green S14. Dark Green S15. Dark Purple S16. Dark Brown

標準色板目錄

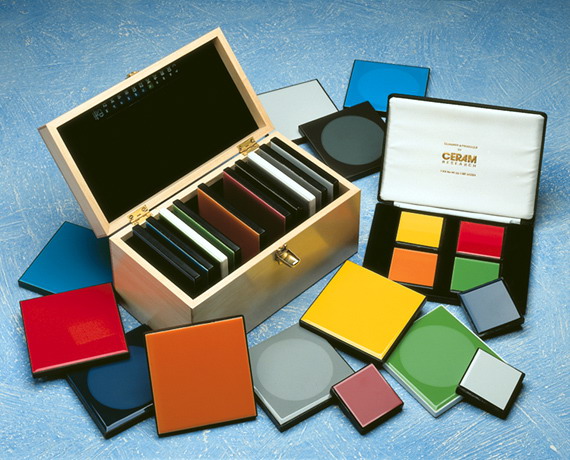

BCRA-14-02C Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Calibrated
BCRA-14-02U Color Standard Set CERAM Research Tiles, Set of 14 2" standards, Boxed/Uncalibrated
BCRA-CY-02C Cyan BCRA Tile-Calibrated CERAM Cyan Tile, 2" , Boxed, calibrated (8°/Hemi)
BCRA-CY-02U Cyan BCRA Tile-Uncalibrated CERAM Cyan Tile, 2" , Boxed, Uncalibrated (8°/Hemi)
BCRA-GS9-02 BCRA Grey Scale Set CERAM Gray scale set, 8 greys and black glass, for 0:45 calibration/small spot
ATBC-16-02u Avian Technologies/Mt. Baker Research Color Set Equivalent to BCRA Series II tiles plus black, white, extra colors
ATGP-16-02u Avian Technologies/Mt. Baker Research Color Set Pastel and extended grey scale set of 16 tiles
ATSC-16-02u Avian Technologies/Mt. Baker Research Color Set Extended (Special) color set, saturated colors, extra whites and greys
Calibrated set AT/MBR Color sets, 8° Hemi refl calibration any set, add (no discount on calibrations)
CSS-CCS-12-02c CCS Colors/Full Set-Calibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, Calibrated at 8°/Hemi. Geom.
CSS-CCS-12-02u CCS Colors/Full Set-unCalibrated CCS Colour/Grey Standards, 2" square, glossy, boxed, typical data given

熒光色度標準

FFS-BL1-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- ALN-BP Blue
FFS-BL2-02 Colored Fluorescent Standard-Blue 2" Diameter UV Activated Fluorescent Standard- SPEA Blue
FFS-BG-02 Colored Fluorescent Standard-Blue Green 2" Diameter UV Activated Fluorescent Standard- 480 Blue green
FFS-GR-02 Colored Fluorescent Standard-Br.Green 2" Diameter UV Activated Fluorescent Standard- ALN-GP Green
FFS-OR-02 Colored Fluorescent Standard-Orange 2" Diameter UV Activated Fluorescent Standard- YSA Orange
FFS-BR-02 Colored Fluorescent Standard-Brt.Red 2" Diameter UV Activated Fluorescent Standard- HRA Red
